Static Frequency Converter (SFC) are Manufactured as per customer specifications
IGBT based High Frequency double conversion PWM.
AZ UPS

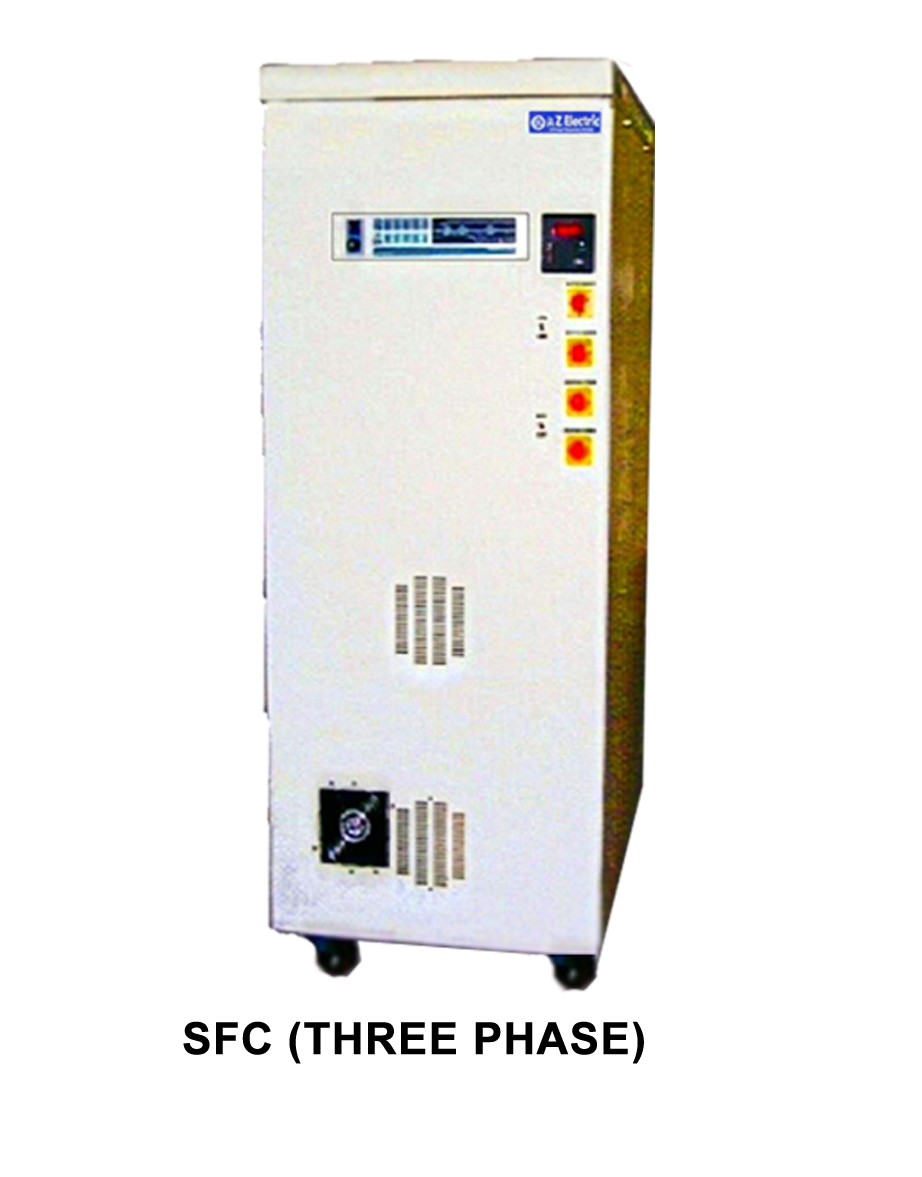

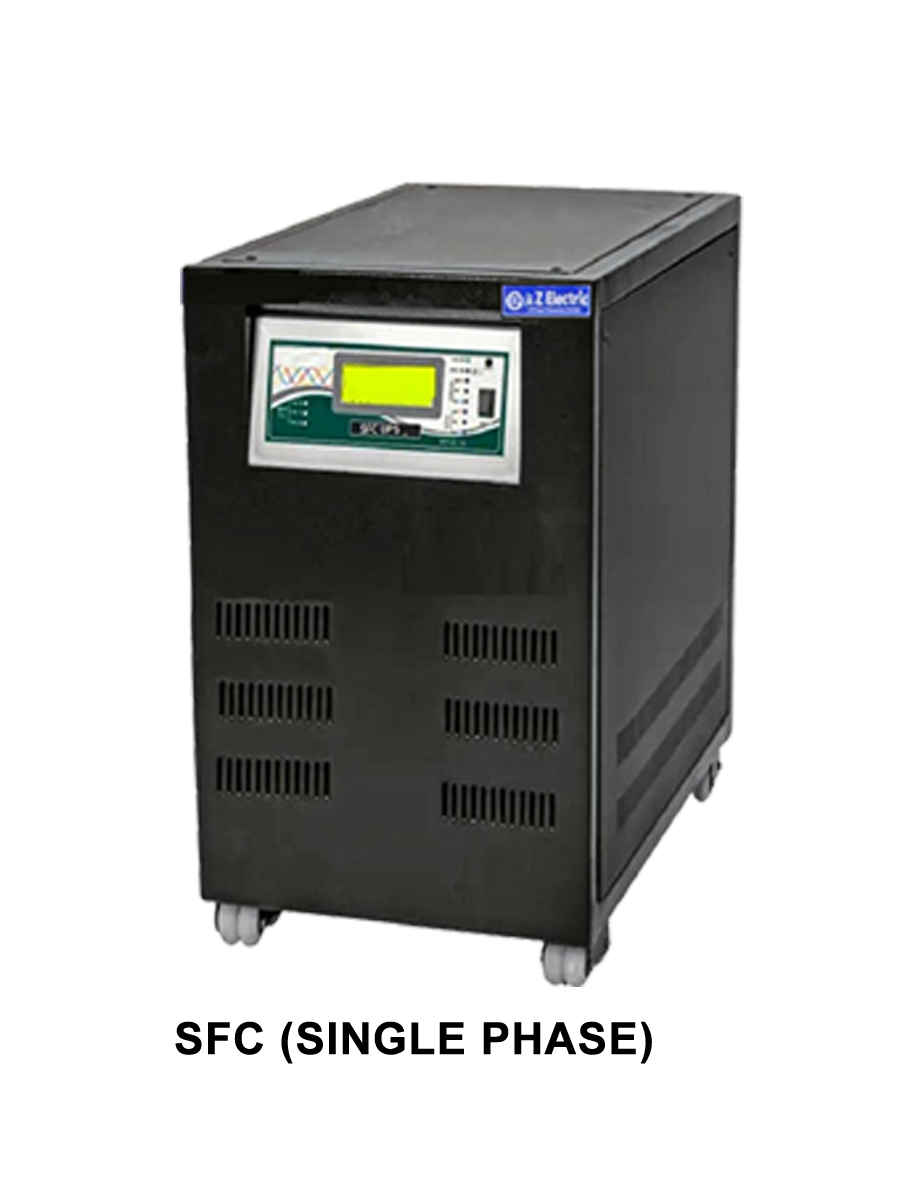

| 1 phase- 1phase, Single Phase: 1~ 200 KVA. | 1 phase- 3phase, Three Phase: 1~ 200 KVA |
|
3 phase- 1 phase 3 phase- 3 phase |
Tech Specs
| 1. | Input: |
|
230 volts 1phase/415v 3phase(3/4 wire) 50Hz.
115volts 1phase/200v 3phase (3/4 wire) 60Hz. variation: voltage ----- +/- 10%, Freqnecy ----+/- 10%. |
|
| 2. | Output: |
|
115v/220v/415v A.C.(1phase/3phase) Freqnecy: 50Hz, 60Hz,400Hz,2400Hz Regulation: +/- 1%. Wave form: Sine wave, Distoration: < 2% on linear load, <5% on non linear loads Efficiency: > 90% |
|
| 3. | Protection: |
|
Input--- a:MCB/MCCB b:over/under voltage, Single phasing, Reverse phasing. c:surge suppression
Output--- a: over/under voltage. b: Overload: 125% FOR 1 min. and 150% for 10sec, short circuit. c: MCB/MCCB/DCCB d: soft start. |
|
| 4. | Ingress protection: IP20/IP40/IP41/---/IP65 (as per consumter specs) |
| 5. | Communication (optional): RS-232,RS-485,SCADA,event logging,SNMP. |
