UPS Systems are Manufactured as per customer specifications

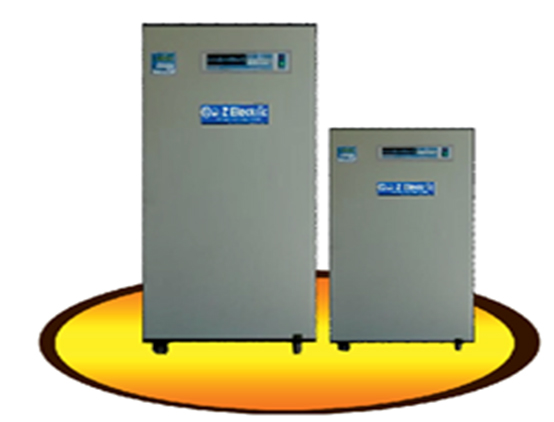

Alfa Series PFC Online UPS

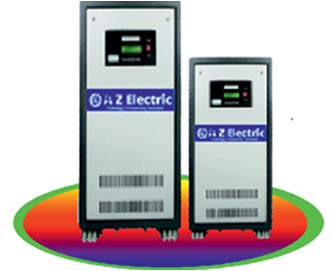

EECO Series PFC Online UPS

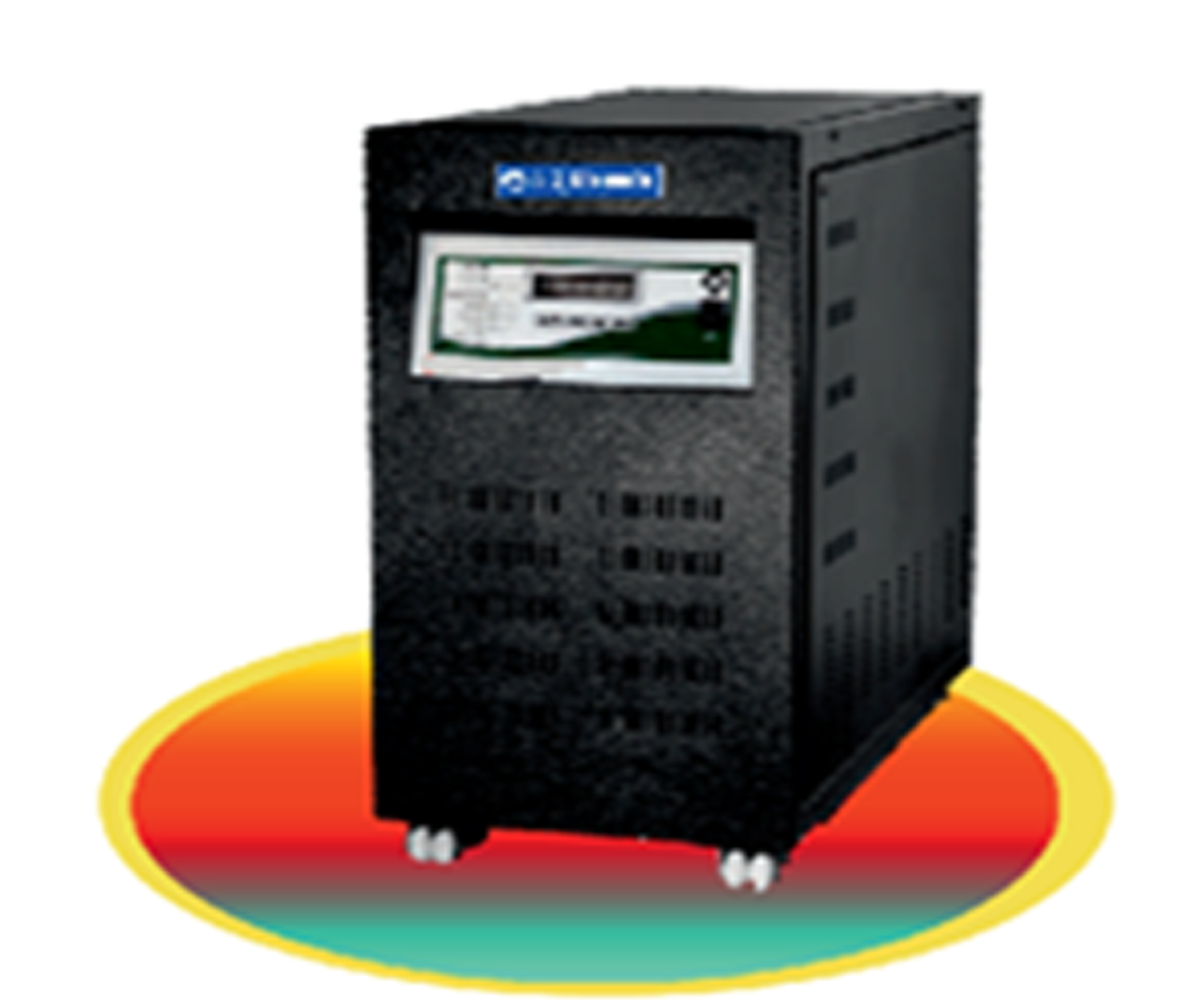

Ultimate Series Online UPS
HF Series Online UPS
IGBT based High Frequency double conversion PWM.
AZ UPS
| 1 phase- 1phase, Single Phase: 1~ 200 KVA. | 1 phase- 3phase, Three Phase: 1~ 200 KVA |
|
3 phase- 1 phase 3 phase- 3 phase |
Tech Specs
| 1. | Input: |
|
230 volts 1phase/415v 3phase(3/4 wire) 50Hz.
115volts 1phase/200v 3phase (3/4 wire) 60Hz. variation: voltage ----- +/- 10%, Freqnecy ----+/- 10%. |
|
| 2. | Output: |
|
115v/220v/415v A.C.(1phase/3phase) Freqnecy: 50Hz, 60Hz. Regulation: +/- 1%. Wave form: Sine wave, Distoration: < 2% on linear load, <5% on non linear loads Efficiency: > 90% |
|
| 3. | Protection: |
|
Input--- a:MCB/MCCB b:over/under voltage, Single phasing, Reverse phasing. c:surge suppression
Output--- a: over/under voltage. b: Overload: 125% FOR 1 min. and 150% for 10sec. c: short circuit. d: MCB/MCCB/DCCB e: soft start. |
|
| 4. | Ingress protection: IP20/IP40/IP41/---/IP65 (as per consumter specs) |
| 5. | Communication (optional): RS-232,RS-485,SCADA,event logging,SNMP. |
