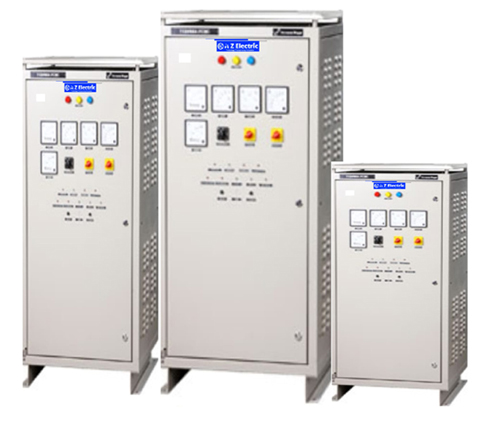

Battery Charger are Manufactured as per customer specifications
1phase/3phase SCR controlled Float cum Boost (3/6/12/24 pulse),
IGBT High Freqnecy, SMPS based.
AZ FCBC.
|
Battery VoltageL 1v -400V or as per customer specifications.
Charging current + Load: UP TO 500Amps. |
Tech Specs
| 1. | Input: |
|
230 volts 1phase/415v 3phase(3/4 wire) 50Hz.
115volts 1phase/200v 3phase (3/4 wire) 60Hz. variation: voltage ----- +/- 10%, Freqnecy ----+/- 10%. |
|
| 2. | Output: |
|
2v/6v/12v/24v/_ _ 360/400V
Regulation: +/-1% Ripple: <2% Voltage adj: Float --+/- 10%, Boost --+/-15% |
|
| 3. | Protection: |
|
Input--- a:MCB/MCCB b:over/under voltage, Single phasing, Reverse phasing. c:surge suppression
Output--- a: over/under voltage. b: over current, short circuit. c: MCB/MCCB/DCCB d: Earth fault. e: soft start. f: Reverse polarity. |
|
| 4. | Ingress protection: IP20/IP40/IP41/---/IP65 (as per consumter specs) |
| 5. | Communication (optional): RS-232,RS-485,SCADA,event logging. |
